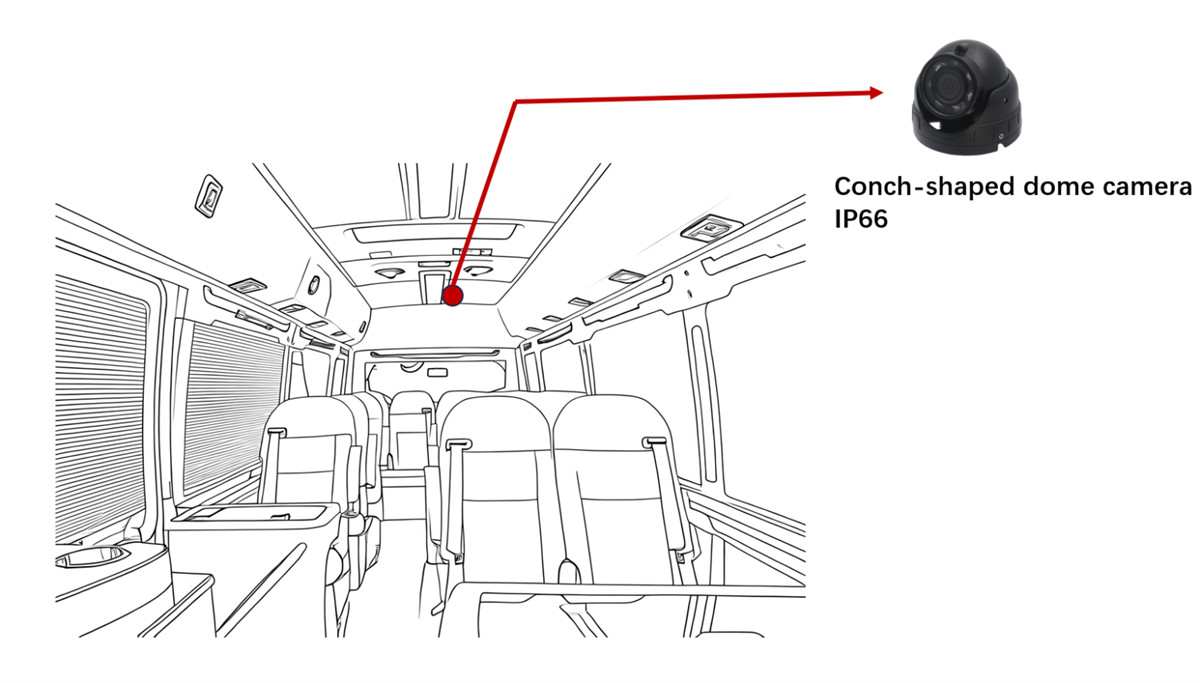

Classic Small Conch-Shaped Camera for Vehicle Interior
With an IP66 waterproof rating, this camera offers 360-degree flexible installation and easy angle adjustment. It also supports audio. We offer OEM and ODM customization, with the option to choose different chip solutions based on specific usage scenarios, meeting complex on-site requirements.
Equipped with a network HD camera, it provides better image quality, safer transmission, and easier maintenance.
Product Features:
1.1080P HD resolution.
2.IP66 waterproof design.
3.Visual angle up to 120º.
4.Infrared range: 3-5 meters.
5.Supports on-site voice collection.
6.Supports ONVIF protocol.
7.Operating temperature: -30ºC to 70ºC.
8.Operating voltage: DC12V.
Available Options:
Economical version Wide dynamic range version
Specifications
Image sensor | 1/2.9" 2MP progressive scan CMOS |
video codecs | H.264/H.265/Mjpeg(optional) |
encoding bitrate | 128Kbps-8Mbps |
maximum resolution | Main：1920*1080（25/30fps） |
network interface | 6-pin aviation connector |
camera angle | Max150° |
Image Mode | Normal |
Audio | Support |
audio codecs | G.711 |
GAMMA | 0.45 |
BLC | Auto |
AGC | Auto |
White Balance | Auto |
Electronic Shutter | 1/30’---1/50000’sceonds |
Mini illumination | 0lux |
nfrared night vision range | 3m-5m |
dynamic range | 85db（WDR ON） |
SNR | 52Db |
basic protocol | TCP/IP,HTTP,FTP,DHCP,DNS,DDNS,RTP,RTSP, |
connection protocol | ONVIF/CGI |
Waterproof rating | IP66 |
Operating temperature | -30ºC---70ºC， RH95%MAX |
Storage temperature | -40ºC——80ºC，RH95%MAX |
Power Supply | 12V±10% |
